Status Columns

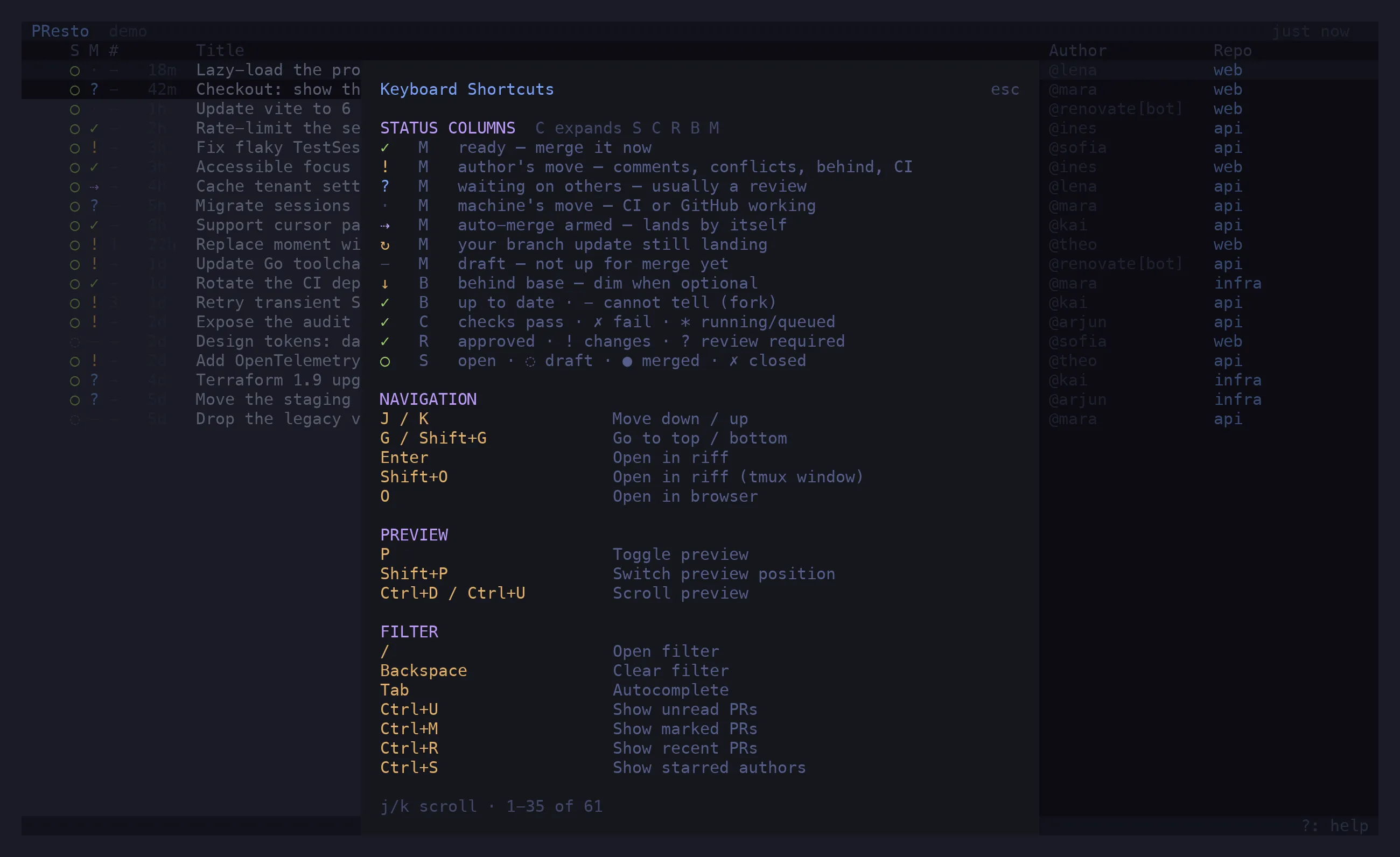

Every row carries five single-character columns. The first four are the gates GitHub evaluates; the fifth is presto’s verdict on them: whose move it is. c toggles between the verdict alone and all five; ? shows this legend in the app.

S — State

Glyph	Meaning
○ green	open
◌ dim	draft
● purple	merged
✗ red	closed

C — Checks

Glyph	Meaning
✓	every check passed (skipped, cancelled and neutral ones are ignored)
✗	a check failed, timed out, or failed to start
*	a check is running — or queued but not yet started
-	no checks on this commit

GitHub’s rollup only counts runs that have started, so a commit whose suites are all still queued would otherwise look like a repo with no CI. presto reads the suites too and shows * for “queued, nothing started yet”.

R — Review

Glyph	Meaning
✓ green	approved — GitHub’s review decision
✓ dim	approvals stand, but GitHub reports no decision (happens; the tick is the receipt)
!	changes requested
?	review required
-	no review yet

Bots are not reviewers: an approval or a thread from renovate[bot], Copilot or anything matching bot_patterns does not count.

B — Base

Where the head branch sits relative to its base — independent of the merge state, which folds “behind” into “blocked” whenever both apply.

Glyph	Meaning
✓	up to date with the base branch
↓ yellow	behind, and the base branch requires PRs to be up to date — this blocks the merge
↓ dim	behind, but updating is optional
-	cannot tell: a fork PR, or the REST fallback path

Whether the base requires an update comes from the repo’s rulesets (rules/branches), which need only read access — classic branch protection needs admin rights and 404s for most people.

M — Merge verdict

The single answer to who is holding this up? Deliberately not blocked / pending / ready: measured across the configured repos, that split put 86 % of open PRs in “blocked” and made the column a constant. Sorting by whose move it is spreads the same PRs across buckets that each imply a different next step.

Glyph	Verdict	When
✓ green	ready	merge state is clean or has hooks; or unstable (only a non-required check is red — GitHub offers the merge, the checks column carries the warning)
⇢ purple	auto-merge	auto-merge is armed; it lands by itself when the gates clear
! yellow	author’s move	anything only the author can clear, in this order: open comment threads · conflicts · behind a base that requires it · changes requested · failing checks · required checks that never started
? blue	waiting on others	a review is required; or reviewed, green and still blocked — something unnamed gates it (a required deployment, a CODEOWNER)
· dim	machine’s move	checks are running, queued, or GitHub is still computing the merge state
↻ yellow	pending	you fired a branch update and GitHub has not landed it yet; clears when a refresh shows a new head commit, or after two minutes
- dim	draft	not up for merge, so no verdict — nothing GitHub reports about a draft is trustworthy enough to build one on

Two rules worth knowing:

• Open threads outrank everything. Many teams block by commenting rather than by requesting changes, so GitHub reports “review required” (or even “clean”) on a PR whose reviewer is in fact waiting on the author. An unresolved thread is the author’s move, and only once every thread is resolved does an unapproved PR go back to waiting for a review.
• A review outranks running CI. The review is the bottleneck a human can clear now; CI finishes on its own either way.

In the preview

The preview header repeats the five columns with their meaning written out — Author’s move — 2 open comment threads to resolve — derived from the same PR object the row renders, so the two can never disagree.

The comment column

# counts comments that are still open: those inside unresolved review threads. A PR with twelve comments of which ten are settled reads as 2; conversation comments and review bodies cannot be resolved and are not counted. The preview shows settled/total.
